FIXING CLADDING TO METAL

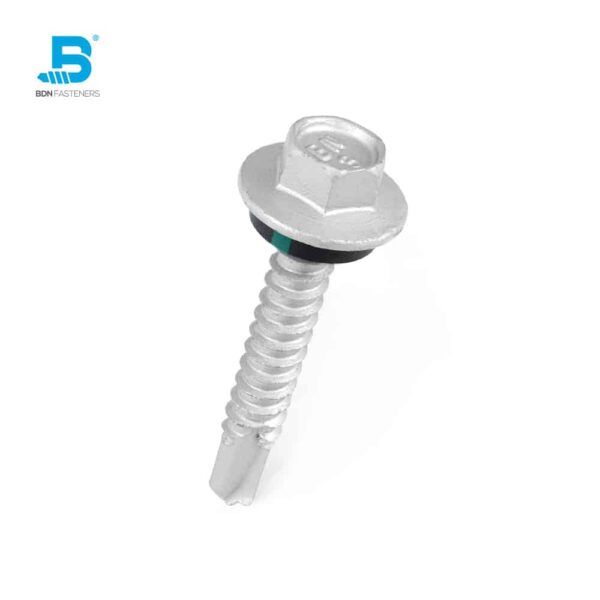

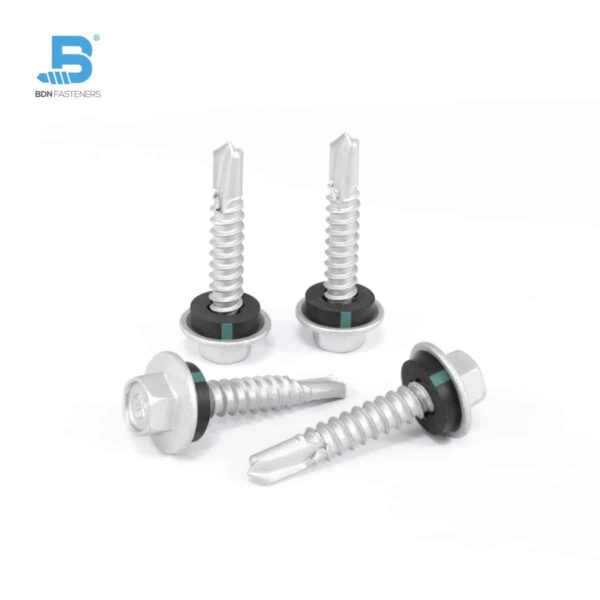

METAL-Tite™ – VALLEY FIXING FASTENERS
Carbon steel fasteners for fixing steel sheets onto steel substrates
| STEEL PENETRATION |  |
| Max 4.0mm thick (For #10 gauge) Max 6.0mm thick (For #12 gauge) | |
| ADAPTER TO USE | |
| Magnetic Hex Socket (5/16″) | |
 | |
| PRODUCT FEATURES | |
| Hex Washer Flange Thunder-Shot Point | |
| WASHER | |
| Eco-BDN® Green Washer | |
 |
 |  |  |
| BN2 Series SST 500 hrs + 5 cycles | BN3 Series SST 1000 hrs + 7 cycles | BN+ Series SST 1000 hrs + 15 cycles |
| SDHC1016C2N 10-16x16mm SDHC1020C2N 10-16x20mm SDHC1030C2N 10-16x30mm SDHC1220C2N 12-14x20mm | SDHC1016C3N 10-16x16mm SDHC1020C3N 10-16x20mm SDHC1030C3N 10-16x30mm SDHC1220C3N 12-14x20mm | SDHC1016C3+N 10-16x16mm SDHC1020C3+N 10-16x20mm SDHC1030C3+N 10-16x30mm SDHC1220C3+N 12-14x20mm |
