Ti-Lite ROMA Series
VULCAN Ti-Lite ROMA Polycarbonate sheets are Co-Extruded with heat-reducing additives to block solar transmitted energy, reduce temperature and provide extra shade, and have better heat reflective properties than other light transmitting glazing materials.
Ti-Lite Properties
• Shaded and Cool
• Exceptional Heat Reduction
• Weathering Resistant
• Extra Shade + High Gloss + High Haze
• Exceptional Heat Reduction – Max.13°C or 55°F.
Four color choices
• Metallic Silver
• Metallic Blue
• Metallic Green
• Metallic Bronze
Description

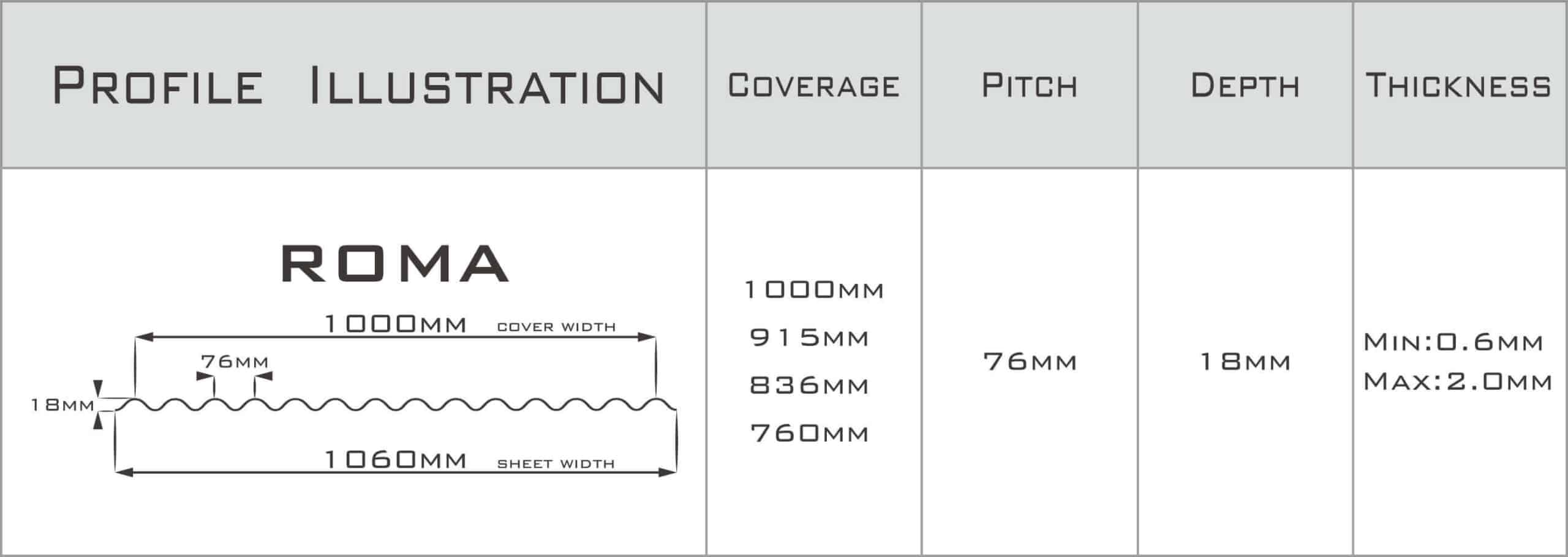

VULCAN Polycarbonate Corrugated ROMA (76/18) Profile
ROMA is one of the most common profiles on the market, compatible with many metal roofings throughout many countries, and in all, an outstanding profile that offers superior physical properties and good refractive properties.
ROMA profile can be designed as a polycarbonate roofing panel as well as a wall cladding panel. One of the biggest advantages of polycarbonate ROMA profile roofing is its arch shape. Combined with the superior flexural and tensile properties of polycarbonate, creates an extremely strong and reliable roofing panel and wall cladding panel.
Product Overview
Product Overview
Introducing Ti-Lite Series
VULCAN Ti-Lite sheets are Co-Extruded with heat-reducing additives to block solar radiation and have better heat reflective properties than other light-transmitting glazing materials.
It is the best choice for energy-efficient light transmitting construction and provides exceptional shading properties – an average of 25% visible light transmission rate; perfect for areas requiring low visible light and low heat transmission.
Ti-Lite blocks a portion of heat building near-Infrared radiation, is capable of reducing temperatures up to 15°c, and transmits cool shaded lighting, thus improving well-being while reducing AC costs.
VULCAN offers Ti-Lite ROMA polycarbonate in four different colors – Metallic Silver, Blue, Green and Bronze.
Product Strengths
Ti-Lite Material
Designed to significantly reduce solar-transmitted energy even to a level of 10% from the solar level that originally hit the upper side of the sheet facing the sun.
Ti-Lite Technology
Excellent shading properties, on average 46% light transmission rate (Reduced VIS – 380~780nm).
Exceptional heat reduction properties (Controlled NIR – 780~2500nm), a temperature drop of 7°c~15°c depending on the relative temperature and humidity.
Aesthetically pleasing from the outside, and provides sufficient lighting with no glare indoors.
Light Transmission Rate
Controlled VIS (380~780nm) Excellent shading Properties – Less than 46% light transmission rate.
Heat Reflective Properties
Controlled NIR (780~2500nm) Capable of reducing temperatures up to 15°c*.
*Certain conditions may apply.
*Certain conditions may apply.
Base Material
VULCAN polycarbonate sheets use only 100% Virgin Covestro UV stabilizer included master-batch.
UV Protective Coating
Co-Extrusion ensures that an evenly spread UV protective layer cap is added on top of the polycarbonate base material.
Avient UV and Light stabilizers blocks 99.5% of harmful UV wavelengths between 290nm~400nm.
With co-extruded UV protection, VULCAN Polycarbonate sheets are able to last 10 years or more.
Clean Room Manufacturing
VULCAN Sheets are produced in ISO Class 7 (FED STD 209E equivalent Class 10,000) clean rooms to ensure an impeccable quality.
Detailed Product Specifications
Detailed Product Specifications
VULCAN Ti-Lite ROMA Polycarbonate Material Grade & Colors
| Product Grade | Ti-Lite Heat Blocking & UV Protected Polycarbonate sheet | |||
| Outlook |  |
 |
 |
 |
| Color | Metallic Silver | Metallic Blue | Metallic Green | Metallic Bronze |
| Raw Material | 100% Virgin Covestro UV Stabilized Polycarbonate Resin | |||
| Performance Additive |
Ti-Lite heat blocking material |
|||
| Warranty | 10 year warranty: 5 for yellowing, and 10 year for usage under normal conditions. *Please refer to the installation instructions and list of harmful chemicals. Failure to comply shall void warranty. |
|||
| Light Transmission Rate | 46% | |||
| UV Resistance | Standard UV Stabilizers included in base material. Avient CESA-Light co-extruded UV and Light Stabilizers |
|||
| Properties | Ti-Lite provides exceptional shade and great heat reflective properties. (Reflects heat from the covered area) | |||
| Places to Use | Specially designed for hot areas which requires lots of shade, but still need well-dispersed lighting. Recommended for warehouse, patios, rainsheds, canopies, carparks, and many more. |
|||
VULCAN Ti-Lite ROMA Polycarbonate Material Properties
| Material Grades | Ti-Lite Series | |
| Color | Silver/Blue/Green/Bronze | |
| LIGHT TRANSMISSION | 46% | |
| UV | CESA-Light Co-Extruded | ● |
| Included in Base Material | ● | |
| Warranty | 5yrs (Yellowing) | ● |
| 10yrs (Usage) | ● | |
| 1yr | ||
| Transparent | ||
| Translucent | ● | |
| Lighting | Direct | |
| Diffused | ● | |
| Shading | Excellent | ● |
| Average | ||
| Minimum | ||
| IR Control | Excellent | ● |
| Minimum | ||
| Poor | ||
| PAR Control | Excellent | |
| Average | ● | |
| Minimum | ||
VULCAN Ti-Lite ROMA Polycarbonate Sheet Properties
| Material Typical Properties | Test Method | Results | Remark |
| Tested on 1.0mm Ti-Lite Sheets | |||
| Tensile Strength @yield (kgf/cm²) | CNS 11335 | 693 | Should exceed 551（kgf/cm²） |
| Tensile Elongation (%) | CNS 11335 | 17 | Mean Value of 3 Specimen |
| Impact Strength | CNS 12093 | No Rupture | Mean Value of 3 Specimen |
| Change Percentage of Yellow Index (YID) after Weathering Resistance test (1200hrs) |
ASTM G154 |
ΔYI -0.49 | |
| Visible Light Transmittance (%) | ASTM D1003 | 25 | Metallic Silver Metallic Blue Metallic Green Metallic Bronze |
| Ultraviolet Transmittance (%) | ASTM D1003 | 0.2 | |
| Density (ρ) | ASTM D792 | 1.20 g/cm³ | |
| Burn Characteristics | CNS 12093 | Burnt portion self extinguishes after burner is removed | |
| Properties | Ti-Lite provides exceptional shade and great heat reflective properties (Reflects heat from the covered area) Designed to lower temperatures, provide great shade and cooling |
||
| Places to Use | Specially designed for hot areas which requires lots of shade, but still need well-dispersed lighting. Recommended for warehouse, patios, rain sheds, canopies, parking lots, and many more. |
||
