Ti-Lite SOLID EMBOSSED Series
VULCAN Ti-Lite sheets are Co-Extruded with heat reducing additives to blocks solar transmitted energy, reduce temperature and provide extra shade, and have better heat reflective properties than other light transmitting glazing materials.
Ti-Lite Properties
• Shaded and Cool
• Exceptional Heat Reduction
• Weathering Resistant
• Extra Shade + High Gloss + High Haze
• Exceptional Heat Reduction – Max.13°C or 55°F.
Four color choices
• Metallic Silver
• Metallic Blue
• Metallic Green
• Metallic Bronze
Description

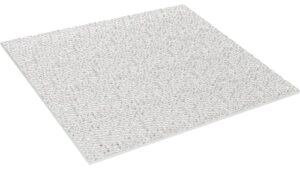

VULCAN Solid EMBOSSED Polycarbonate sheet Profile
Our Solid Embossed polycarbonate sheet profile has all the properties of standard Solid Flat sheets but with additional light diffusing features.
The embossed texture targets users requiring softened, indirect light exposure and is most often used as interior wall claddings, windows, or skylights.
VULCAN Polycarbonate Solid EMBOSSED sheets come in sheets and rolls, and is customizable.
Product Overview
Product Overview
Introducing Ti-Lite Series
VULCAN Ti-Lite sheets are Co-Extruded with heat-reducing additives to block solar radiation and have better heat reflective properties than other light-transmitting glazing materials.
It is the best choice for energy-efficient light transmitting construction and provides exceptional shading properties – an average of 25% visible light transmission rate; perfect for areas requiring low visible light and low heat transmission.
Ti-Lite blocks a portion of heat building near-Infrared radiation, is capable of reducing temperatures up to 15°c, and transmits cool shaded lighting, thus improving well-being while reducing AC costs.
VULCAN offers Ti-Lite ROMA polycarbonate in four different colors – Metallic Silver, Blue, Green and Bronze.
Product Strengths
Ti-Lite Material
Designed to significantly reduce solar-transmitted energy even to a level of 10% from the solar level that originally hit the upper side of the sheet facing the sun.
Ti-Lite Technology
Excellent shading properties, on average 46% light transmission rate (Reduced VIS – 380~780nm).
Exceptional heat reduction properties (Controlled NIR – 780~2500nm), a temperature drop of 7°c~15°c depending on the relative temperature and humidity.
Aesthetically pleasing from the outside, and provides sufficient lighting with no glare indoors.
Light Transmission Rate
Controlled VIS (380~780nm) Excellent shading Properties – Less than 46% light transmission rate.
Heat Reflective Properties
Controlled NIR (780~2500nm) Capable of reducing temperatures up to 15°c*.
*Certain conditions may apply.
*Certain conditions may apply.
Base Material
VULCAN polycarbonate sheets use only 100% Virgin Covestro UV stabilizer included master-batch.
UV Protective Coating
Co-Extrusion ensures that an evenly spread UV protective layer cap is added on top of the polycarbonate base material.
Avient UV and Light stabilizers blocks 99.5% of harmful UV wavelengths between 290nm~400nm.
With co-extruded UV protection, VULCAN Polycarbonate sheets are able to last 10 years or more.
Clean Room Manufacturing
VULCAN Sheets are produced in ISO Class 7 (FED STD 209E equivalent Class 10,000) clean rooms to ensure an impeccable quality.
Detailed Product Specifications
Detailed Product Specifications
Material Grade
| Product Grade | Ti-Lite Heat Reflective sheets with co-extruded CESA-Light UV and Light Stabilizers | |||
| Outlook |  |
 |
 |
 |
| Color | Metallic Silver | Metallic Blue | Metallic Green | Metallic Bronze |
| Raw Material | 100% Virgin Material with added Titanium Dioxide (TiO2) for extra heat insulation. | |||
| Warranty | 10 year warranty: 5 for yellowing, and 10 year for usage under normal conditions. *Please refer to the installation instructions and list of harmful chemicals. Failure to comply shall void warranty. |
|||
| Light Transmission Rate | 46% | |||
| UV Protection | Optical Grade UV400 resin imported directly from Covestro (Bayer) Double layered Co-Extruded coating process creates a longer lifespan compared with other product brands |
|||
| Properties | Ti-Lite provides exceptional shade and great heat reflective properties. (Reflects heat from the covered area) | |||
| Places to Use | Specially designed for hot areas which requires lots of shade, but still need well dispersed lighting Recommended for warehouse, patios, rainsheds, canopies, carparks, and many more |
|||
Material Properties
| Material Grades | Ti-Lite Series | |
| Color | Silver/Blue/Green/Bronze | |
| LIGHT TRANSMISSION | 46% | |
| UV | UV400 Co-Extruded | ● |
| Included in Raw Material | ● | |
| Warranty | 5yrs (Yellowing) | ● |
| 10yrs (Usage) | ● | |
| 1yr | ||
| Transparent | ||
| Translucent | ● | |
| Lighting | Direct | |
| Diffused | ● | |
| Shading | Excellent | ● |
| Average | ||
| Minumum | ||
| IR Control | Excellent | ● |
| Minimum | ||
| Poor | ||
| PAR Control | Excellent | |
| Average | ● | |
| Minimum | ||
Sheet Properties
| Material Typical Properties | Test Method | Results | Remark |
| Tested on 1.0mm Ti-Lite Sheets | |||
| Tensile Strength @yield (kgf/cm²) | CNS 11335 | 693 | Should exceed 551（kgf/cm²） |
| Tensile Elongation (%) | CNS 11335 | 17 | Mean Value of 3 Specimen |
| Impact Strength | CNS 12093 | No Rupture | Mean Value of 3 Specimen |
| Change Percentage of Yellow Index (YID) after Weathering Resistance test (1200hrs) |
ASTM G154 ASTM E313 |
ΔYI -0.49 | Measured Wavelength 400~700nm |
| Visible Light Transmittance (%) | ASTM D1003 | 25 | Metallic Silver Metallic Blue Metallic Green Metallic Bronze |
| Ultraviolet Transmittance (%) | ASTM D1003 | 0.2 | |
| Density (ρ) | ASTM D792 | 1.20 g/cm³ | |
| Heat Resistance | CNS 12093 | Burnt portion self extinguishes after burner is removed | 10 Specimen Tested. Does Not Reach 25mm Reference Mark. |
| Properties | Ti-Lite provides exceptional shade and great heat reflective properties (Reflects heat from the covered area). Designed to lower temperatures, provide great shade and cooling |
||
| Places to Use | Specially designed for hot areas which requires lots of shade, but still need well dispersed lighting. Recommended for warehouse, patios, rainsheds, canopies, carparks, and many more | ||
